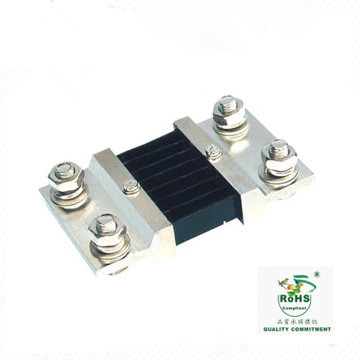

● Features

The interchangeable shunts are used for multiply the measuring range of measuring instrument



● TECHNIQUE SPECIFICATIONS



Accuracy class : 0.5% for 5-40,000A , 1% for 5000A above

Ambient conditions: Temperature :

-40 ℃ - 60 ℃ ， relative humidity ≤ 95%（35℃）

Capacity to wishstad mechanical force :

It is capable of with standing the the transport bumping at acceleration of 70m/ second and shock frequency of 80-120 time / min for 5 hours

Over rating capacity :

120% of rated current for 2 hours

Voltage drop : 50mv , 60mv , 75mv , 100mv

Giving out heat when loaded :

Not be more than 80 ℃ after temperature rise gets steady , not be more than 80 ℃ at rated current of over 50A

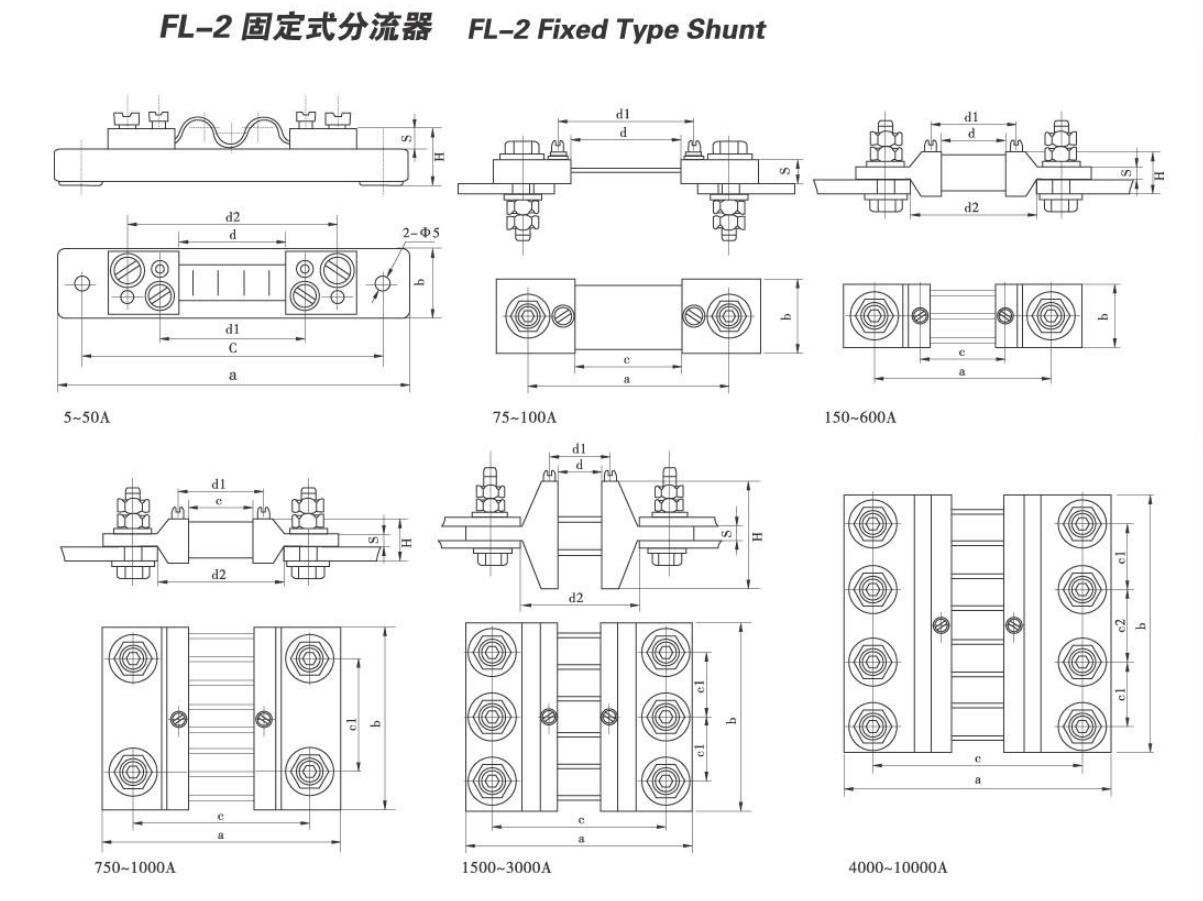

● CONSTRUCTION DRAWING

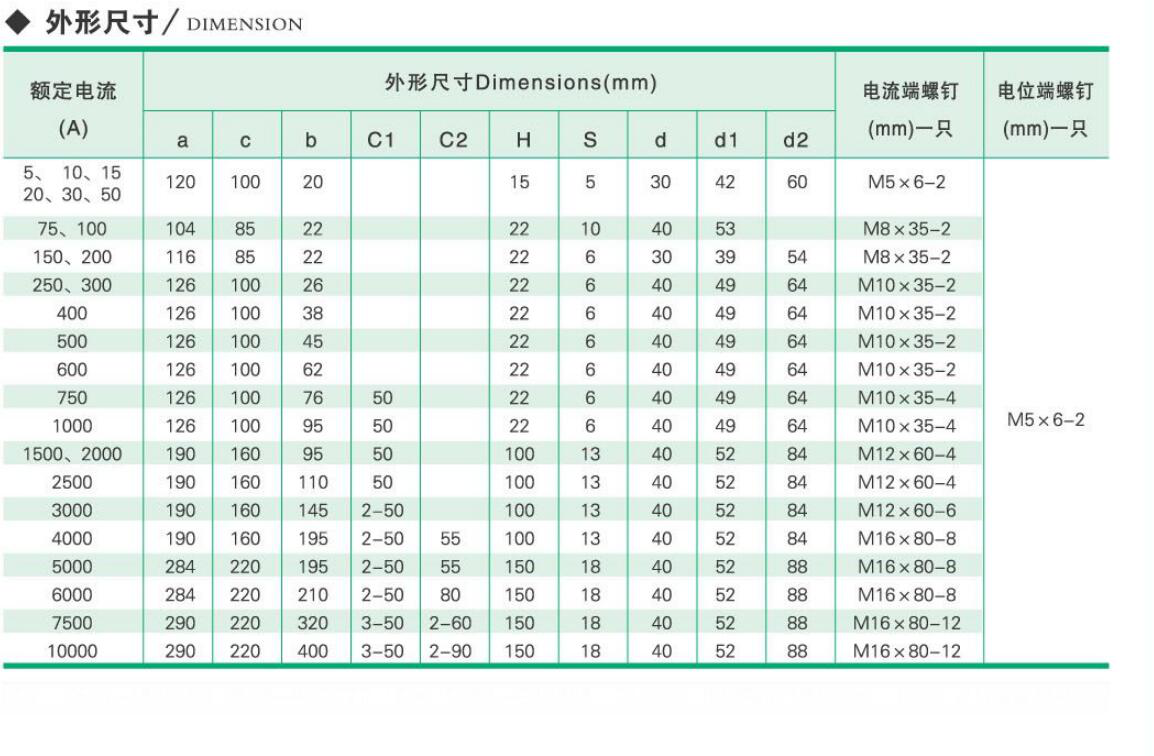

● DIMENSIONS
